PowerShell Empire for Pentester: Mimikatz Module

This article will showcase various attacks and tasks that can be performed on a compromised Windows Machine which is a part of a Domain Controller through PowerShell Empire inbuilt Mimikatz Module.

Table of Content

·         Introduction

·         DC Sync Attack

·         DC Sync Hash Dump

·         Golden Tickets

·         Extracting Tickets

·         Domain Cache

·         Mimikatz Commands

·         Extracting Certificates

·         Mimitokens

·         Crypto Keys

·         Purging Tickets

·         Local Security Authority (LSA|LSASS.EXE)

·         SAM

·         Conclusion

Introduction

PowerShell Empire is one those tools that keeps on giving to the Penetration Community for as long as it was first introduced. Any other tool that we could remember that has more utility than anything is the Mimikatz. It has been years since the release of both of these tools but their ability to consistently attack the Windows Machine is unmatched. We know that neither PowerShell Empire nor Mimikatz is being used in the wild currently because of their signature that has been added to almost all of the Anti-Virus Software and across Virus Total. This has although made them less usable as compared to Cobalt Strike and other alternatives but when it comes to understanding the basics of Windows Authentication Systems such as SAM and LSASS and attack them and extract credentials there is no tool that can work as efficiently as Mimikatz.

We covered various forms of Credential Dumping with Mimikatz in our Series but we didn’t present a consolidated guide to use Mimikatz with PowerShell Empire. Hence, we created this resource.

DC Sync Attack

The Mimikatz DCSYNC-function allows an attacker to replicate Domain Controller (DC) behavior. Typically impersonates as a domain controller and request other DC’s for user credential data via GetNCChanges. But compromised account should be a member of administrators, Domain Admin or Enterprise Admin to retrieve account password hashes from the others domain controller. As a result, the intruder will build Kerberos forged tickets using a retrieved hash to obtain any of the Active Directory ‘s resources. We have compromised the machine and its user who is a member of privilege account (Administrators, Domain Admin or Enterprise Admin).

usemodule credentials/mimikatz/dcsync

set user krbtgt

execute

Loading the dcsync module will invoke the mimikatz PowerShell script to execute the dcsync attack to obtain the credential by asking from an others domain controller in the domain. Here, we are requesting for KRBTGT account Hashes and as result, it will retrieve the KRBTGT NTLM HASH.

Learn More: Credential Dumping: DCSync Attack

DC Sync Hash Dump

Similar to the DC Sync attack we just performed on a particular user so the NTLM hash returned is also of that particular user. But in case the attacker wants to extract the hash of the entirety of all the users created on the Domain Controller. This is when the hashdump module comes into action. It will perform the DC Sync attack for each and every user and then provide the hashes for all of them in a consolidated view as shown in the image below.

usemodule credentials/mimikatz/dcsync_hashdump

execute

Golden Ticket

Golden Ticket attack is a famous technique of impersonating users on an AD domain by abusing Kerberos authentication.

Default local accounts are built-in accounts that are created automatically when a Windows Server domain controller is installed, and the domain is created. These default local accounts have counterparts in Active Directory. The default local accounts in the Users container include: Administrator, Guest, and KRBTGT.  In the Active Directory domain, every domain controller runs a KDC (Kerberos Distribution Center) service that processes all requests for tickets to Kerberos. For Kerberos tickets, AD uses the KRBTGT account in the AD domain.  A legitimate user begins the communication for a service request to the Application Server. The KBRTGT account acts as a service account for the Key Distribution Center (KDC) and separated into three parts: Database (db), Authentication Server (AS) and Ticket Granting Server (TGS). The Authentication Server (AS) verifies client authentication. If the logged user is authenticated successfully the AS issues a ticket called TGT which confirms to other servers that user has been authenticated. Then the User request for TGS from the KDC that will be used to access the service of the application server.

Forging Kerberos tickets depends on the password hash available to the attacker. Golden Tickets requires the KRBTGT password hash. Golden Tickets are forged Ticket-Granting Tickets (TGTs), also called authentication tickets, Attacker escapes authentication and initializes communication with KCD. Since a Golden Ticket is a forged TGT, it is sent to the Domain Controller as part of the TGS-REQ to get a service ticket. The TGT is used mainly to inform KDC’s domain controller that another domain controller has authenticated the users. The reality is that the TGT has the hash KRBTGT password encrypted and any KDC service inside the domain may decrypt to proves it is valid.

If an intruder has access to an Active Directory forest/domain administrator/local administrator account, he/she can exploit Kerberos tickets for identity theft. A golden ticket attack is something that he/ he creates a ticket created by Kerberos that is valid for 10 years. However, if any other user has changed its password, the attacker may use the KRBTGT account to stay on the network. The attacker may also create accessible user/computer/service tickets from Kerberos for a non-existent Active Directory account. As we know, there is some basic requirement create a forge TGT i.e., extract the “domain Name, SID, krbtgt Hash”, Once an attacker has admin access to a Domain Controller, the KRBTGT account password hashes can be extracted using Mimikatz.

Once we have compromised the victim machine who is member of AD, then we can use the following module directly without admin privilege session.

usemodule credentials/mimikatz/golden_ticket

set domain <Domain_name>

set sid <SID>

set group 500

set user pavan

set krbtgt_hash <ntlm_hash>

set id 500

execute

kerberos::golden /user:pavan /domain:ignite.local /sid: SID

back

shell dir \\DC1.ignite.local\c$

This is a dynamic way to generate ticket because this module can be run without having admin privilege session and it will inject the ticket into the current session and the attacker can get direct access of the server.

Learn More: Domain Persistence: Golden Ticket Attack

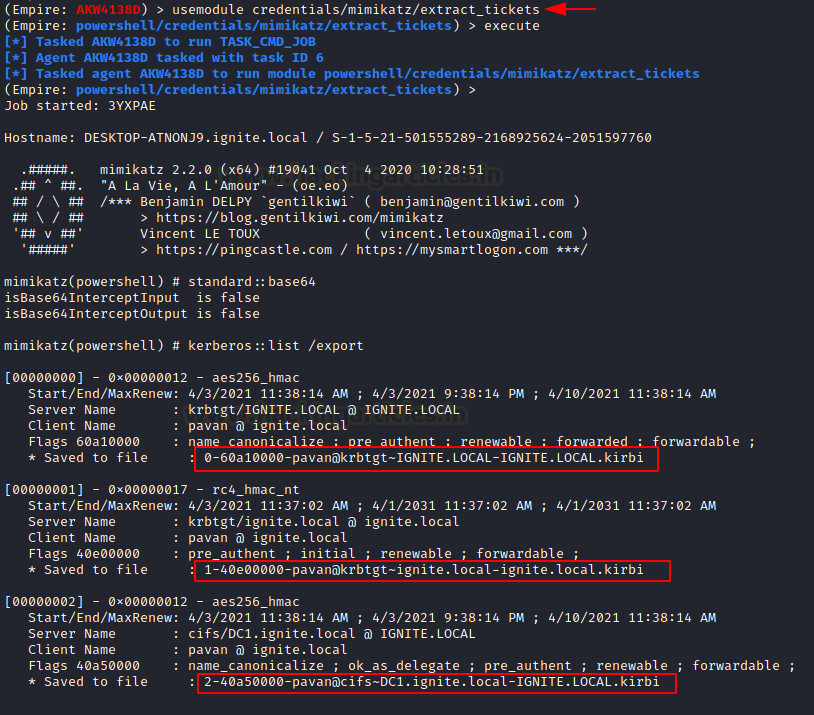

Extracting Tickets

We saw how to forge tickets. Tickets last longer than a normal persistence. Golden Tickets can last up to 10 years. Hence, we should have the ability to extract those tickets for usage down the road.

usemodule credentials/mimikatz/extract_tickets

execute

Learn More: Deep Dive into Kerberoasting Attack

Domain Cache

Microsoft Windows stores previous users’ logon information locally so that they can log on if a logon server is unreachable during later logon attempts. This is known as Domain Cache credential (DCC) but in-actually it is also known as MSCACHE or MSCASH hash. It sorted the hash of the user’s password that you can’t perform pass-the-hash attacks with this type of hash. It uses MSCACHE algorithm for generating password hash and that are stored locally in the Windows registry of Windows operating system. These hashes are stored in the Windows registry, by default the last 10 hashes.

There two versions of MSCASH/MSCACHE or DCC

·         MSCACHEV1 or DCC1 used before Vista Server 2003

·         MSCACHEV2 or DCC2 used after Vista & Server 2003

PowerShell Empire has a module that extracts the MSCACHEV2 hashes from the inside registry of the compromised machine.

usemodule credentails/mimikatz/cache

execute

And again, you will get the MSCACHEv2 hashes on your screen

Learn More: Credential Dumping: Domain Cache Credential

Mimikatz Commands

As we saw that there is no shortage of mimikatz modules on PowerShell Empire but the Mimikatz is still a big tool with many more attack methods than the Empire team can catch up. So, if you are at the point where you don’t remember any module but you do know the mimikatz command to run, then Empire has you covered. Use the mimikatz/command module to run manual commands directly on the compromised target. To demonstrate, we will be running the lsadump::lsa /patch on the target machine. When run, Mimikatz patches the samsrv.dll running inside the process lsass.exe to dump the NTLM hashes.

usemodule credentials/mimikatz/command

Set Command lsadump::lsa /patch

execute



Extracting Certificates

A Root SSL certificate is a certificate issued by a trusted certificate authority (CA). In the SSL ecosystem, anyone can generate a signing key and use it to sign a new certificate. However, that certificate isn’t considered valid unless it has been directly or indirectly signed by a trusted CA. Signed certificates can be used to mount Man in the Middle or Phishing attacks on the target or the target’s network. To extract the certificate, form a compromised machine use this module.

usemodule credentials/mimikatz/certs

execute



The list goes on as on a rough estimate any system that is under the use might contain a short of 400 certificates and this number increases based on the user activity on the system. The details extracted by Mimikatz is of subsequent value.

Mimitokens

Token impersonation technique can be used as local administrator to impersonate another user logged on to a system. In case we compromised a local admin on the target machine then we can use it to impersonate another logged on user e.g., domain controller using Mimitokens.

usemodule credentials/mimikatz/Mimitokens

execute



Crypto Keys

The keys module of the PowerShell Empire works on the back of the crypto module of Mimikatz, It is one of the oldest module that still works in wild. It directs on the CryptoAPI functions of the target. In general sense the usability is like the certutil binary that is present in the Windows Machine by default. It uses the token impersonation to its advantage and then patches the legacy CryptoAPI functions to patch the CNG key isolation service that makes the keys exportable. After that it just exports those keys in a PVK file.

usemodule credentials/mimikatz/keys

execute



Purging Tickets

While working with the tokens and tickets, there will be a time where the number of tickets would be too large to work with. This scenario will arise sooner or later and that’s when the purge module will help you. It will purge all the tickets in the current session.

Logon Passwords

Mimikatz has the ability to retrieve clear text password as well as hashes. This is done by exploiting the Local Security Authority Service on the Windows. After a machine is compromised, the attacker can use the PowerShell Empire to load the logon passwords module to extract the clear text passwords. These passwords can be used to create Golden Tickets, Account Take Over or just a preliminary step to another attack. As we can see the image shown that we have successfully extracted the password for Yashika and Aarti Users.

usemodule credentials/mimikatz/logonpasswords

execute



Learn More: Understanding Guide to Mimikatz

Local Security Authority (LSA|LSASS.EXE)

LSA and LSASS stands for “Local Security Authority” And “Local Security Authority Subsystem (server) Service”, respectively. The LSA is a protected system process that authenticates and logs users on to the local computer. Domain credentials are used by the operating system and authenticated by the LSA. The LSA can validate user information by checking the SAM database located on the same computer. LSASS manages the local system policy, user authentication, and auditing while handling sensitive security data such as password hashes and Kerberos keys. The password is protected by the operating system. Only code running in-process with the LSA can read and write domain credentials. LSASS can store credentials in multiple forms, including: Reversibly encrypted plaintext, Kerberos tickets (ticket-granting tickets (TGTs), service tickets), NT hash, LAN Manager (LM) hash.

After compromising the target, we can use the PowerShell Empire to extract the user hashes from the machine with the help of the lsadump module as shown in the image.

usemodule credentials/mimikatz/lsadump

execute



Learn More: Credential Dumping: Local Security Authority (LSA|LSASS.EXE)

SAM

SAM is short for the Security Account Manager which manages all the user accounts and their passwords. It acts as a database. All the passwords are hashed and then stored SAM. It is the responsibility of LSA (Local Security Authority) to verify user login by matching the passwords with the database maintained in SAM. SAM starts running in the background as soon as the Windows boots up. The sam module of the PowerShell Empire can be used to extract the SAM file and the associated password hash.

usemodule credentials/mimikatz/sam

execute

After the target is compromised by other methods the attacker can use the PowerShell Empire sam module to target the SAM file and read the password hashes as shown in the image below.

Learn More: Credential Dumping: SAM

Conclusion

After Credential Dumping Series which contained different tools that can be used against a specific vulnerability it felt like there is a gap for a guide that can help a person who is trying to get the reins of PowerShell Empire and to showcase the ability of Mimikatz to target the wide range of Windows Authentication Systems with compatibility to integrate with different frameworks such as Metasploit, PowerShell Empire, Koadic etc.
