In this tutorial we are going to discuss Packet Crafting by
using a great tool Colasoft packet builder which is quite useful in testing strength
of Firewall and IDS and several servers against malicious Flood of network
traffic such as TCP and UDP Dos attack. This tool is very easy to use
especially for beginners.
Packet crafting is a technique that allows network administrators to probe firewall rule-sets and find entry points into a targeted
system or network. This is done by manually generating packets to test network devices and behavior, instead of
using existing network traffic. Testing may target the firewall, IDS, TCP/IP stack, router or any other
component of the network. Packets are usually created by using a packet
generator or packet analyzer which allows for specific options and flags to be set on the created packets. The act of
packet crafting can be broken into four stages: Packet Assembly, Packet
Editing, Packet Play and Packet Decoding.
For more detail visit Wikipedia.org
Mode of Operation
Packet Assembly: It is the initial state of packet crafting where tester needs to decide
the network that can be compromise easily by creating a packet which can
exploit the network by shooting its vulnerability. The packet should be design
in a manner that it maintains its ability to being undetectable in target’s
network.
Famous Tools for Packet
Assembly are: Hping3 and Yersinia
Packet Editing: In this stage captured packet is edited or modified which cannot be
possible to do in Packet Assembly phase. In this phase packet is edited in a
manner that it can dump more and more information of target’s network by making
small amount of change in it. For example change data length (payload) of
packets.
Famous Tool of packet
Editing: Colasoft and Scapy
Packet Playing: In this phase when packet is
ready to launch then it sends to target’s network for exploiting its network
and collect the information. This is the actual arena where above both actions
is tested and if packet is failed to complete its goal of retrieving victim’s
information or exploit its vulnerability then again the packet send back to
Packet Editing phase for modification.
Packet Analysis: This is the last stage where packet is analysis when it received on
targeted network. The captured packet is decoded for further investigating for
retrieving its internal details which can speak up its goal for establishing
connection on target’s network.
Famous Tool of Packet Analysis: wireshark and Tcpdump
Colasoft Packet
Builder enables creating custom network packets; users can use this tool to
check their network protection against attacks and intruders. Colasoft Packet
Builder includes a very powerful editing feature. Besides common HEX editing
raw data, it features a Decoding Editor allowing users to edit specific
protocol field values much easier.
Users are also able to edit decoding information in two
editors - Decode Editor and Hex Editor. Users can select one from the provided
templates Ethernet Packet, ARP
Packet, IP Packet, TCP Packet and UDP Packet, and
change the parameters in the decoder editor, hexadecimal editor or ASCII editor
to create packets. Any changes will be immediately displayed in the other two
windows. In addition to building packets, Colasoft Packet Builder also supports
saving packets to packet files and sending packets to network.
Let’s start!!!
TCP Packet Crafting
You can download it from
above given link, once it get downloaded then run the applictaion as administrator to begin with crafting various
Packets. As I had example above a packet crafting involves 4 phases, lets start it by adding the packet which we will
craft for testing our newtork.
Click on ADD given in menu bar.
A small window will pop up to select mode of IP packet to
be crafted. Here we are going to choose TCP
packet for crafting for example by increasing the size of the packet or by
sending the individual flag of the Tcp Protocol to the destination IP address.
Well if you will notice given below image then you will observe that I had set
delta time 0.1 sec as time elapse
for flow of traffic for all crafted packets. The delta time is the time gap between
the each packet.
Window is categories into three phases as Decode Editor, Hex Editor and packet List.
From given image you can observe following information which I had edited for
TCP packet
Decode Editor:
This section contains packet information such as protocol, Time to live and
etc. Here you need to add source address responsible for sending
packet and then add destination address
which is responsible for receiving incoming packet traffic.
Source address: 192.168.1.102
Destination address: 192.168.1.107

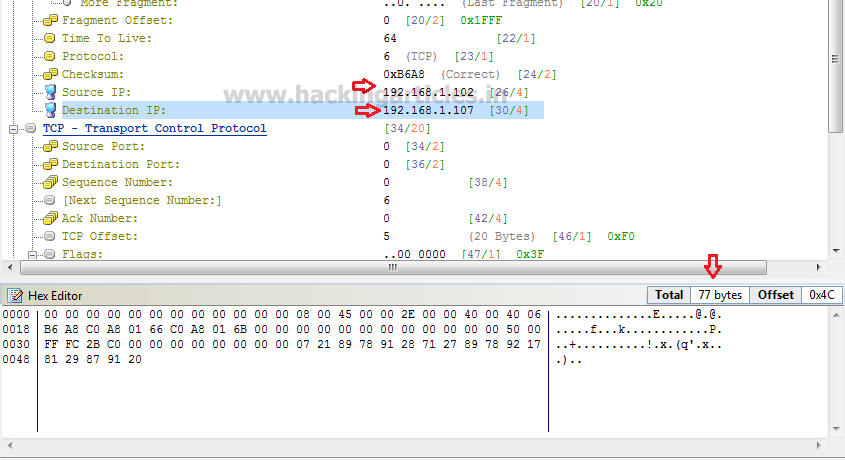

Hex Editor: This section displays the raw information
(Hexa decimal) releated to the data size of the packet. By typing random string
you can increase the size of the packet.
Packet size:
77 bytes
This phase is also
known as Packet Editing mode where
we can modify our packet.
Click on Adpter given in the menu bar
to select specific adpter from which packets will be sent. From given below
image you can observe it, it showning adapter status: LAN Operational.
Note: It is only availabe when you have run the
application as adminsitrator.
Click on Send option from menu bar and enable
the check box for “Burst Mode” and “Loop sending” and adjust the number of
packets to be sent to the Destination Network and the delay time gap between
the each packets.
Then click on start to send the TCP packets. This
phase is know as Packet playing mode
where are ready to sent packet on target netwok.
Using wireshark we can capture packet and
traffic between source and destination. So here you can perceive that infinite TCP packet is being transferring to
target’s network. This phase is known as packet
analysis mode where sent packet is sniff or analysis for identifying sender
objectives behind sending the packet.
ARP Packet Crafting
Again repeat the same to choose ARP packet for crafting Packet for ARP protocol on target’s network.
Well if you will notice given below image again then you will observe that I
had set same delta time 0.1 sec.
Apart from editing source
and destination IP here we need to add source and destination physical address
also.
Hence this time I had set
below information in decoder Editor and Hex editor.
Source MAC: AA:AA:AA:AA:AA:AA
Source address: 192.168.1.102
Destination MAC: BB:BB:BB:BB:BB:BB
Destination address: 192.168.1.107
Packet size:
78 bytes
You can use any method to find destination MAC address.
After editing your packet information verifies
that changes through packet list given on right side of window before sending
the packet. If you notice given image below then you can read the summary where
it is show broadcasting ARP message who is 192.168.1.107?
Click on Adpter given in menu bar to
select specific adpter for network selection. From given below image you can
observe it showning adapter status: LAN
Operational.
Click on Send option from menu bar and enable
the check box for “Burst Mode” and “Loop sending” and adjust the number of
packet to be sent to the Destination network according to your wish.
Then click on start to launch sending process of ARP
packet. This action is known as Packet playing.
Form given below image you can observe the continue ARP
packet making request for who is 192.168.1.107, which meaning our packet
playing is gives positive result. From wireshark target is able to analysis the
goal of packet received from sender’s network.
IPv4 Packet Crafting
Again repeat the same process to choose IP packet for crafting Packet for IPv4 protocol on target’s
network. Again if you will notice given below image again then you will observe
that I had set same delta time 0.1 sec.
This time I had set below
information in decoder Editor and Hex editor for Editing Packet.
Source address: 192.168.1.102
Destination address: 192.168.1.107
Packet size:
71 bytes
After editing your packet information verifies
that changes through packet list given on right side of window before sending
the packet.
Click on Send option from menu bar and enable
the check box for “Burst Mode” and “Loop sending” and adjust the number of
packet to be sent to the Destination network according to your wish.
Then click on start to send the IPv4 packet.
UDP Packet Crafting
Again repeat the same to choose UDP packet for crafting UDP Packet. If you will notice given below
image then you will observe that again I had set delta time 0.1 sec as time elapse for flow of
traffic for all packets.
This time I had Editied below
information in decoder Editor and Hex editor for desigining my packet.
Source address: 192.168.1.102
Destination address: 192.168.1.107
Packet size:
72 bytes
After editing your packet information verifies that changes
through packet list given on right side of window.
Click on Adpter to select specific adpter for sending the packets. From
given below image you can observe it
showning adapter status: LAN Operational.
Click on Send option from menu bar and enable
the check box for “Burst Mode” and “Loop sending” and adjust the number of
packet to be sent to the Destination network according to your wish.
Then click on start button to
sending the crafted UDP packet.
You can clearly observe in given below image the flow of
traffic of UDP packets from senders
network to the Receivers network.
Hence in this tutorial we tried to explain all for mode
of operation of crafting a packet for testing a network using colasoft and
wireshark.
