WebDAV Penetration Testing

Hello Pentesters, today, in this article we are going to learn about the concept of WebDAV. We will also see how to set up the Web DAV server and configure a lab for Penetration Testing.

Table of Contents

·        Introduction to WebDAV

·        Lab Configuration

·        Creating a Sudo User

·        Installing Apache2 server

·        WebDAV Setup

·        Adding Authentication

·        Penetration Testing

·        Conclusion

Introduction to WebDAV

WebDAV is a network protocol which stands for Web-based Distributed Authoring and Versioning that in simpler terms can be said that it is an extension to the HTTP methods and headers which offers the ability to create files and folders, and allow to edit, delete or move them remotely. It also allows transmitting of these files over the internet. It uses port 80 for a simple and an unencrypted connection and makes use of SSL/TLS on port 443 for an encrypted connection.

There are various servers which support the working of WebDAV protocol, but in this article, we are going to see Apache2 Server.



Lab Configuration

Before we begin penetration Testing, let us make sure that we have the following things:

·         Ubuntu Machine

·         Kali Linux Machine

·         Apache2 Web Server

Create a Sudo User

Power on your Ubuntu system as root. Let us begin by creating a user. We will create a user with the name ‘ignite’. Then we will be prompted to set a new password for the user. Retype the password to proceed. You can add the user information if you prefer, you can continue with default information. Here we need to make sure that the user has sudo privileges. As we are still logged in as root, we will now grant sudo access to the user ‘ignite’. Hence, ignite is now a Sudo User.

Now we will update our system.

adduser ignite

usermod -aG sudo ignite

apt-get update

Installing Apache2 server

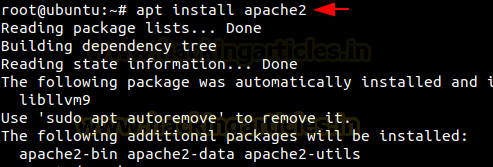

Let’s install apache2 in our systems

apt install apache2

WebDAV Setup

After we are done installing and setting up the webserver, lets now start with the setup of WebDAV. Let’s start with creating a directory and change the owner settings for apache2. This will allow Apache2 to write any changes in it. Once this is done, we will now enable the WebDAV module. Now let us restart the Apache2 server.

mkdir /var/www/webdav

chown -R www-data:www-data /var/www/

a2enmod dav_fs

service apache2 restart

Now, let’s configure the file using a text editor

nano /etc/apache2/sites-available/000-default.conf.

Let us add the following text in the file as shown in the image below.

DavLockDB /var/www/DavLock

Alias /webdav /var/www/webdav

<Directory /var/www/webdav>

    DAV On

</Directory>



Now let us restart the service so that our WebDAV server works without authentication.

service apache2 restart

Once, Apache2 is restarted, create a file to begin penetration testing.

echo “Join Ignite Technologies” > file.txt

When we use the Kali Linux machine, we can see that the web-server is visible on the web browser on port 80. Here we see that the contents of the web server are available without any authentication being prompted. We also see that the file we have created is also available.



Adding Authentication

Here we will be using HTTP therefore we will make use of Digest Authentication. Now we will install the dependencies to create a Digest File. Now we will create a file for the password for the user ‘ignite’. It now prompts to create a new password for ignite in realm WebDAV. We also give permissions to the Apache to read the password file, therefore we change the owner.

apt-get install apache2-utils

htdigest -c /etc/apache2/users.password webdav ignite

chown www-data:www-data /etc/apache2/users.password

Once this file is created, we now make changes to the configuration and add a few lines to its directory as shown below in the image.

nano /etc/apache2/sites-available/000-default.conf

AuthType Digest

AuthName "webdav"

AuthUserFile /etc/apache2/users.password

Require valid-user



Now we will enable the digest module and restart the apache2 services.

a2enmod auth_digest

service apache2 restart



Penetration Testing



Once the lab is completely set, we will begin with penetration testing. Let us switch on the Kali Linux machine and open the WebDAV in the web browser. Here you will be authenticated with the user name and password. So as an attacker we will try to gain unauthorised access to the server.

Here we will make use of the password cracking tool Hydra to gain the credentials by using the correct module on the WebDAV server.

hydra -L users.txt -P passwords.txt 192.168.1.6 http-get /webdav

Here we get the username:password as ignite:123. Let us proceed to test the WebDAV server using davtest by uploading the test files. It generally allows the penetration testers to find any DAV services which are easily exploitable. We will then see what kind of test file was successfully uploaded after the scan.

davtest -url http://192.168.1.6/webdav -auth ignite:123

Here we see that txt file was successfully executed. Now we exploit PUT method using cadaver to upload a malicious file in the WebDAV server. There are multiple ways you can exploit PUT method from here.

cadaver http://192.168.1.6/webdav

Now when you open the web page, you see that the malicious file shell.php that you have uploaded as a pen tester is visible on the WebDAV.

Now we set the kali machine in the listener mode to communicate with the WebDAV server.

Conclusion

Hence, in this article, we have seen how to set up a lab with a WebDAV server and how can we perform penetration testing.
