Introduction
Frida is a dynamic instrumentation toolkit that is used
by researchers to perform android hooking (intercepting IPC and modifying it to
make a function perform desired function). Frida uses javascript to perform
hooking since Android’s native code and javascript both run on JIT compilation
techniques, it can intercept it’s inter process communication, add the code
specified in a script and completely change the function’s implementation. Some
of it’s use cases in real life are:
·
Spy on Crypto APIs
·
Modify function’s output
·
Bypass AES encryption
·
Bypass SSLPinning and Root detection
·
Trace private application code
·
Bypass various software sided locks (like
applock)
In this article, we’ll explain basics of Frida, how to
create your own Frida script, hook it into processes and perform various
functions. Regardless to say, there is no end to what a program can do,
therefore, there is no limit on frida’s applications, hence, this article is
only restricted to basics. If you want an advanced look into Frida and reverse
engineering, I’ll tag the resources at the bottom of the article.
Table of Content
·
Root detection bypass
·
Hooking different kinds of methods used in
Java
o onCreate,
onStart etc.
o exit()
o user
defined methods
o variable
·
SSLPinning bypass
·
Implementing hooking in python
·
Playing a game!
Let’s go then.
Root Detection Bypass
Application developers sometimes hard code a detection
logic per which an application successfully detects the presence of various SU
binaries and stops execution of application. One such example is demonstrated
below. As you can see the app gives a popup of restriction and exits as soon
user hits ok.
Now, we’ll try and remove this restriction using Frida.
First, it is recommended you install a Frida server in the device (Follow steps
here).
Next, we’ll launch the server onto the device.
adb connect 192.168.27.105
adb shell “/tmp/frida-server &”
Now, we’ll first install frida with the command:
pip install frida
pip install frida-tools
After successful install, we can see all the running
process in the deivce on which frida server is running by the command:
frida-ps -U
As you can see that our app is running here. We have to
bypass root detection here. We can either try and reverse engineer the jar
files, create our own javascript code and bypass root detection or we can rely
on code already created by a large community of developers on codeshare frida
repo.
Web link to site is: https://codeshare.frida.re/browse

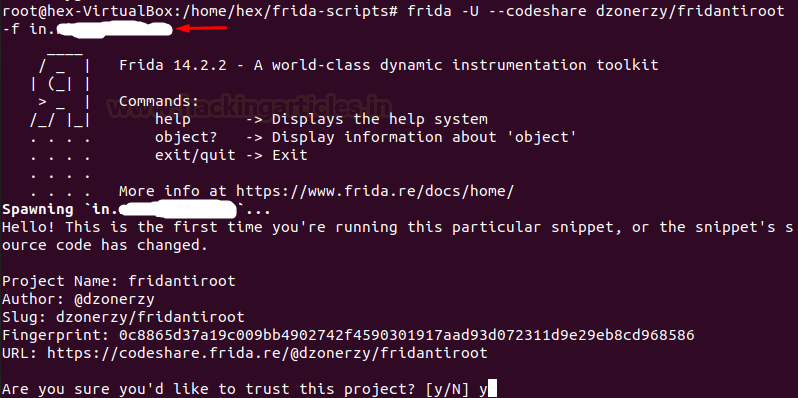

Here, we can see an antiroot script by dzonerzy. We’ll
run it with the following command:
frida -U --codeshare dzonerzy/fridantiroot -f
in.<package company>.<package name>
Now, press y to trust the project.
Now, all that’s left to do is press “%resume” to
resume the execution with our hooked code!
And just like that, we can see that root detection has
been successfully bypassed!
Hooking different methods in java
Now, a class might have multiple methods and each of
these methods have specific purpose. For example, onCreate() method
defines the implementation of an activity as soon as the activity is created
(or launched). So, what is, we can hook this function and change the behavior
of the activity when it is created. For the demonstration purpose, I’ll just
print some custom text in my console as soon as activity is called but the
possibilities are limitless. Typically you won’t have access to the source
code, hence, what we’ll do is extract the apk first and then decompile it to
view source code. To pull the apk we’ll first know it’s path and then pull it.
adb shell pm path jakhar.aseem.diva
adb pull
/data/app/jakhar.aseem.diva-dxAm4hRxYY4VgIq2X5zU6w==/base.apk
Now, as explained in part 1 of this series (refer para 3
of article here),
we’ll decompile it using apktool and then use dex2jar to convert it in jar
format, and finally use jd-gui to view the decompiled source code like below.
Here is the MainActivity class decompiled.
here we see the following things:
·
We can see that onCreate has a Bundle
parameter
·
It’s creating a view of the main page
Now, below is an example of how to hook onCreate()
method.
console.log("Script loaded!");
Java.perform(function(){
var
mainapp = Java.use("jakhar.aseem.diva.MainActivity");
mainapp.onCreate.implementation
= function(){
console.log("My
script called!");
var
ret = this.onCreate.overload("android.os.Bundle").call(this);
};
send("Hooks
installed");
});
Explanation:
1.
Any implementation of the hook is put inside Java.perform(function(){
//<code>
2.
The activity we want to hook (main activity) is
put inside Java.use(“jakhar.aseem.diva.MainActivity”); and assign a
variable to it. Here, mainapp
3.
Now, mainapp.onCreate.implementation sets
a definition of the function.
4.
Here, we can insert any code we cant to run in
the onCreate method. I just inserted console.log function to output “My
script called!” everytime onCreate is called.
5.
New variable ret calls this newly formed
implementation function. overload method is used to add this code to the
existing piece of code. Here, “android.os.Bundle” is input as a
parameter since in the original function a bundle object is used.
6.
Finally, call method is used to call the current
method using “this” pointer.
7.
send() function outputs the text in double
quotes on the current frida command line.
To launch this script we type in the following command:
frida -U -l mainactivityhook.js -f
jakhar.aseem.diva
As you can see now, the hook is successfully installed,
activity launches and our custom output is now displayed and hook is
successfully installed
Hooking a defined method:
Unlike onCreate method that is present in the native libraries, some methods
are custom created. For example, if you inspect the code of diva, you’ll see a
function startChallenge() that is launching challenges in the
application. I’m not putting the code in here but you can refer to the
decompiled code in the above step. Now, we’ll observe that startChallenge is
launching activities present in the project. And since it is launching an
activity, it has an “android.view.VIEW” argument passed in its code. Now in the
code below, every time a user hits a button to start any challenge, we’ll just
force him to call our hook and our defined output would be displayed (that is
MainActivity.startChallenge() is now started). Needless to say we can change
this by any implementation we want.
console.log("Hooked startChallenge()
function");
Java.perform(function(){
var newstart =
Java.use("jakhar.aseem.diva.MainActivity");
newstart.startChallenge.overload("android.view.View").implementation
= function(v){
//enter
any implementation of startChallenge you want
//for
demo I'm just sending an alert on frida console
send("MainActivity.startChallenge()
is now started");
var
ret = this.startChallenge.overload("android.view.View").call(this);
};
});
To call this script, without having to input %resume this
time, we can type in the command with --no-pause filter:
frida -U -l main_startchallenge.js -f
jakhar.aseem.diva
And sure enough, every time a button is pressed, our custom input is
displayed.

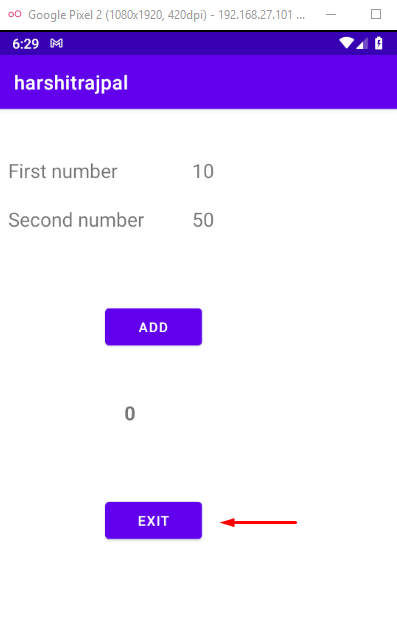

Hooking exit() method: We can also tamper the exit method in
android just like we tampered onCreate method. Here, I’m using a demonstration
application that I custom coded (link here). It has a button
that is performing exit function. You can see a sample screenshot below:
Now, here we see the exit button. As the name states, on
pressing it, application exits.
We create a hook down below that will stop the exit. Here,
“java.lang.System” is the package that has exit function and so we’ll overload
it using “sysexit.exit.overload().implementation.” Now, whenever user clicks on
exit, our send method will be called and exit will be stopped.
console.log("Hooking on exit function");
Java.perform(function(){
var sysexit = Java.use("java.lang.System");
sysexit.exit.overload("int").implementation
= function(var_0) {
send("I've
stopped java.lang.System.exit() now!");
};
});
Let’s fire this script up and sure enough we can see that the process is
not terminated when exit button is clicked. If it had been terminated frida
must have thrown a process terminated error and closed the console.
frida -U -l avoidexit.js -f com.example.harshitrajpal --no-pause
Hooking return value: We have hooked methods till now, but a return
variable can also be hooked and its output be tampered with. In article 3 of
this series, I had already demonstrated this using Objection tool but today
we’ll do this using frida and our manual code. In the application that I custom
coded which is mentioned above, there is a simple program to display output of
10 and 50. We’ll hook this return value and output 100. The code to do this is
pretty straightforward:
console.log(“Hook for implementation of method”);
Java.perform(function myFunc() {
var myClass =
Java.use(“com.example.harshitrajpal.MainActivity”);
myClass.returnValue.implementation
= function(){
//we will
manipulate the return value here
var ret =
100;
return ret;
}
});
let’s first run the program without loading our hook. We can see that
the program outputs 60 which is the correct answer.
Now, we’ll fire up our script and see what changes happen in the
application now.
frida -U -l retValueHook.js -f com.example.harshitrajpal --no-pause
And sure enough, the output gets tampered and 100 is returned now!
SSLPinning
Bypass
Frida is most commonly used to bypass SSLPinning in android so that
researchers and pen testers can intercept its network calls and conduct a
traffic analysis. For the demo of this attack, I downloaded an application
named “Certificate Pinning Demo”. For the demonstration of this attack, you
must have your burp suite configured with your device (follow point 3 of
article here) . Now, when I pin
the client and send an HTTPS request, it throws an SSL error.
And sure enough, no communication is intercepted in burp suite as well.
Now, on the codeshare repository here, akabe1 has put a
great script to perform SSLPinning bypass. We’ll use this script to perform the
attack. Note that applications might have different code of pinning, so these
codes need to be modified as and when required.
frida -U --codeshare akabe1/frida-multiple-unpinning -f
com.osfg.certificatepinning
Type %resume once the script gets loaded.
And finally, when we now send a request to sslabs.com in pinned mode, we
are able to get an HTTP 200 response code!
Surely, we are now able to intercept communication in burp suite as
well.
Hooking
in Python
Python coders can customize a whole fridascript to run in python
environment using the python’s frida package and API. This would make
performing multiple processes in hooks easier. Here, I’ll create a hook on
startChallenge function as above.
jscode = """
console.log("Hooked startChallenge() function");
Java.perform(function(){
var newstart = Java.use("jakhar.aseem.diva.MainActivity");
newstart.startChallenge.overload("android.view.View").implementation
= function(v){
//enter any
implementation of startChallenge you want
//for demo
I'm just sending an alert on console
send("MainActivity.startChallenge()
is now started");
console.log("You
clicked...but in vain!");
var ret =
this.startChallenge.overload("android.view.View").call(this);
};
});
"""
import frida,sys
process = frida.get_usb_device().attach("jakhar.aseem.diva")
script = process.create_script(jscode)
print("*** Running Hook on startChallenge() now!")
script.load()
sys.stdin.read()
Now, everytime user clicks on any button to start challenge, the
execution stops and our custom output is printed instead.
We, run this script using the command below:
python3 startChallenge.py
Let’s
Play a Game!
All the examples demonstrated till now are very basic. There are
advanced hooking techniques to perform various different functions whose
references I’ll mention at the end. One such challenge I found was on 11x256’s
blog. In example #1, we have to intercept the APK, see what’s happening behind
the white screen, change it’s implementation and modify it’s behavior. finally,
we’ll check logcat to see if our hook worked and the sum of our custom defined
integers is thrown or not.
Follow the link here and download the
sample apk.
First, after running the application in emulator we saw just a plain
white screen. That means something must probably be happening in the
background.
We’ll use drozer to see activities here:
run app.activity.info -a com.example.a11x256.frida_test
As you can see, my_activity is present. This means this is the activity
responsible for full white front screen.
Now, we’ll use objection to watch what this class is actually doing.
(Full objection tutorial here.)
objection --gadget com.example.a11x256.frida_test explore
android hooking watch class com.example.a11x256.frida_test --dump-args
--dump-return --dump-backtrace
Here, observe that fun() is being called. This has two int parameters,
so, presumably these two integers are getting performed a mathematical
operation on.
Now, we write a code in javascript:
console.log("Script loaded successfully ");
Java.perform(function x() { //Silently fails without the sleep from the
python code
console.log("Inside java
perform function");
//get a wrapper for our class
var my_class =
Java.use("com.example.a11x256.frida_test.my_activity");
//replace the original
implmenetation of the function `fun` with our custom function
my_class.fun.implementation =
function (x, y) {
//print the original
arguments
console.log("original
call: fun(" + x + ", " + y + ")");
//call the original
implementation of `fun` with args (2,5)
var ret_value =
this.fun(2, 5);
return ret_value;
}
});
This code does nothing but defines fun() function and specifies 2 and 5
as our own integers on which some mathematical function will be performed. but
before that, script also intercepts and displays the original call and
obviously the original integers!
Let’s fire it up using frida:
frida -U -l 11x256.js -f com.example.a11x256.frida_test
As we can see, the original call had two integers namely, 50 and 30.
Let’s quickly check logcat and see what is happening at the background.
adb logcat | grep frida_test
As we can see in the screenshot down below, a mathematical Sum of type
Double is being repeatedly called. This is similar to the behavior of the app
we just installed that was calling a method called fun after every second.
Hence, it is safe to conclude that fun() is adding two integers. Original
numbers to be added were 50 and 30, which we not only intercepted and dumped
but also changed to 2 and 5 and the sum of 2 and 5 is now being called as
evident in logcat.
References
Hooking is a pentester’s best buddy and reverse engineer’s most handy
tool. It has numerous applications and to write custom scripts to perform
various functions like sniffing crypto APIs, decrypting AES etc, a tester needs
to have complete knowledge of javascript, reverse engineering APKs and java. To
get good at frida and hooking (dynamic instrumentation), I’ll mention the
following references:
·
11x256’s blog here
·
Frida docs here
·
Apps to perform frida demo here along with DIVA and
our custom APK here
· Josh Spicer’s blog here
0 comments:
Post a Comment
