Android is a mobile operating system based on a modified version of the Linux kernel and other open-source software, designed primarily for touchscreen mobile devices such as smartphones and tablets. Android is developed by a consortium of developers known as the Open Handset Alliance and commercially sponsored by Google. In this article series we’ll demonstrate various tools to conduct pentest on Android APK, manual analysis of the application as well as the major vulnerabilities; how to detect and fix them. But before beginning that, it is important to understand the architecture of an Android device, how is an application compiled and most importantly the composition of an Android application.
Table
of Content
1.
Android OS
2.
Android Architecture
3.
APK compilation and decompilation
4.
Components of an APK
5.
Conclusion
6.
References
1.
Android OS
1.1
Brief history
Android
Inc. was founded in Palo Alto, California, in October 2003 by Andy Rubin, Rich
Miner, Nick Sears, and Chris White.
In
July 2005, Google acquired Android Inc. for at least $50 million. Its key
employees, including Rubin, Miner and White, joined Google as part of the
acquisition.At Google, the team led by Rubin developed a mobile device platform
powered by the Linux kernel. Google marketed the platform to handset makers and
carriers on the promise of providing a flexible, upgradeable system.
The first
commercially available smartphone running Android was the HTC Dream, also known
as T-Mobile G1, announced on September 23, 2008.
1.2 Hardware
Android’s main hardware platform for Android
is ARM with x86 and x86-64 architectures also supported in the later releases.
Since Android 5.0 Lollipop, 64 bit variants of all platforms are supported in
addition to 32 bit variant.
1.3 Kernel
As of 2020, Android uses versions 4.4, 4.9 or
4.14 of Linux Kernel. Android Kernel is based on Linux Kernel’s Long Term
Support (LTS) branch.
1.4 File System
Ever since the release of Android, it has
made use of the YAFFS2. After Android 2.3 it used EXT4 file system, although
many OEMs have experimented with F2FS. The following directories are there by
default in any installation of Android:
·
Boot: The partition contains
kernel, ramdisk etc. which is required for the phone to boot when powered on.
·
System: Contains OS files which
includes Android UI and pre-installed apps
·
Recovery: Alternative option to
booting into OS, allows recovery and backup of partitions.
·
Data: Saves user data, apps data,
messaging, music etc. Can be traversed through file browser. This is wiped when
factory reset is pressed. Sub-folders are:
o Android – Default for app cache and saved data.
o Alarms – Custom audio files for alarms.
o Cardboard – Contains data for VR files.
o DCIM – Stores pictures and videos taken by Camera app.
o Downloads – Stores downloaded files from internet.
o Notifications – Custom tones for notifications of some
apps.
o Music, Movies – Default folders to store songs and videos
from third party apps.
o Pictures – Default folder to store pictures taken by
third party apps.
o Podcasts – Stores podcasts files when you use a podcast
app.
o Videos – Stores downloaded videos from third party apps.
·
Cache: Storage of frequently used
data and app components.
·
Misc: Contains other important
system setting information. Like USB config, carrier ID.
2.
Android Architecture
(Source: android.com)
2.1
Kernel
The
kernel is the most important part of the Android OS that provides an interface
for the user to communicate with hardware. It contains the essential drivers
that are used by programs to instruct a hardware component a perform a specific
function. These drivers are audio, display, bluetooth etc.
2.2
Hardware Abstraction Layer (HAL)
A hardware
abstraction layer (HAL) is a logical division of code that serves as
an abstraction layer between a computer's physical hardware and its software.
It provides a device driver interface allowing a program to communicate with
the hardware.
2.3
Libraries
Sitting
on the top of kernel, libraries provide developer support to develop
applications, resource file and even manifest. There are some native libraries
like SSL, SQLite, Libc etc that are required by native codes to effectively
perform a task.
2.4 Android Runtime
Android
Runtime (ART) is an application runtime environment used by the Android OS. A
runtime environment is a state in which program can send instructions to
computer’s processor and access the computer’s RAM. Android apps programmed in
(let’s say) Java, will be first converted to byte code during compilation
packaged as an APK and run-on runtime.
Android
uses a Virtual Machine to execute any application so as to isolate execution of
program from OS and protecting malicious code from affecting system.
Before Android 4.4, that runtime used to be DVM (Dalvik Virtual
Machine) which has since been replaced by Android Runtime (ART).
DVM used
JIT (Just in time) compilation which worked by taking application code,
analyzing it and actively translating it during runtime. ART uses AOT (ahead of
time) compilation that compiles *.dex files (Dalvik Bytecode) before they are
even needed. Usually, it is done during installation and stored in phone
storage.
To be
noted: After Android N, JIT compilation was reintroduced along with AOT and an
interpreter in ARt making it hybrid to tackle against problems like
installation time and memory.
2.5 Application Framework
The entire
feature-set of the Android OS is available to developer through APIs written in
the Java language. These APIs make the most important components that are
needed to create Android apps. These are:
·
View System: Used to build an app’s UI, including lists, text boxes, buttons
etc.
·
Resource Manager: Provides access to non-code resources like
layout files, graphics etc.
·
Notification manager: Allows app to display custom alerts in status
bar.
·
Activity Manager: Manages the lifecycle of apps and provides a
common navigation back stack.
·
Content Providers: Enables apps to access data from other apps
like WhatsApp access data from Contacts app.
2.6 System Applications
The
pre-installed set of core applications used for basic functions like SMS,
calendars, internet browsing, contacts etc.
3. APK Compilation and De-compilation
3.1 Compilation
Android
compilation process could be understood better when comparing to java
compilation process. To compile a java code the following steps are performed:
·
A code written in main.java is compiled by javac (Java compiler).
·
Javac compiles main.java into java byte code (main.class)
·
A Java Virtual Machine (JVM) understands and converts Java byte
code file (main.class) into machine code using JIT (Just-in-time) compiler.
·
The machine code is then run by CPU.
It can be
demonstrated by the following diagram:
Now, the
main difference between Java and Android compilation process is that Android
doesn’t work with JVM because a JVM doesn’t enable a variety of services with a
limited processor speed and RAM. So, Android introduced a Dalvik Virtual
Machine (DVM). However, in latest Android releases ART is being used. The
process is now as follows:
It is to
be noted that even though Dalvik was replaced as the default runtime, Dalvik
bytecode format (*.dex) is still in use.
3.2 Decompiling APK
While conducting reverse engineering, APK
de-compilation and re-compilation is done. We’ll look after proper
recompilation and reverse engineering in further articles, let’s have a look at
de-compilation to understand how an APK is essentially structured when packed
in the format.
It is to be noted that an APK
file is just a ZIP archive that contains XML files, dex code, resource files
and other files.
So, to decompile it we can either:
Unzip <name>.apk
Or we can take aid of a great tool called
apktool. So, we’ll run the following command:
apktool –d –rs diva-beta.apk
ls
cd diva-beta/ && ls
Here, we see that a folder has been created
that essentially packs Manifest file, yml file, resources and a file named
classes.dex
This dex file contains the dalvik byte code
and we’ll further dissemble this file into standard class files using the
following command:
d2j-dex2jar classes.dex
This command further creates a .jar code
structure. We will use a java decompiler to inspect the source code:
Jd-gui classes-dex2jar.jar
It is to be noted that the readability of
this code entirely depends on whether or not an obfuscator (like ProGuard) was
used while creating an APK file.
4. Composition of an APK
Any android
application comprises of 6 essential things which are bound by the application
manifest file that contains the description of how these interact with each
other. Out of these, activities, UI and intents are a must have in any app
while services, content providers and broadcast receivers can be present
depending on needs. The components are:
·
Activities: Activity is a class in Android which, when
implemented, represents
a single screen with a user interface just like window or frame of Java. Every application has a MainActivity (MainActivity.java
if code is in Java) which automatically runs by default
for the first time when an application is run. All the actions performed in
Activity pages are done using callbacks. There are 7 callbacks:
·
Services: A service
is a component that runs in the background to perform long-running operations
without needing to interact with the user and it works even if application is
destroyed. A service can essentially take two states:
a.
Started:
A service is started when an application
component, such as an activity, starts it by calling startService().
Once started, a service can run in the background indefinitely, even if the
component that started it is destroyed.
b.
Bound:
A service is bound when an application
component binds to it by calling bindService(). A bound service offers a
client-server interface that allows components to interact with the service,
send requests, get results, and even do so across processes with interprocess
communication (IPC).

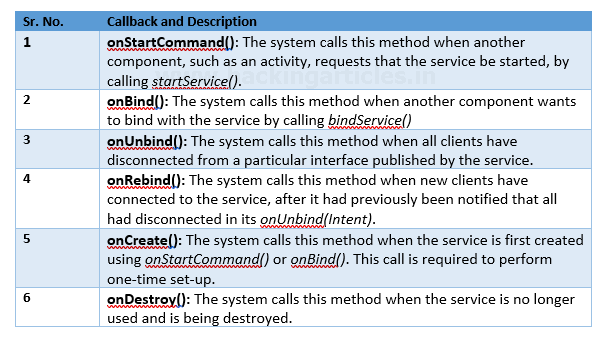

The Service
base class defines various callback methods and the most important are given
below:
·
Content Providers: Content providers provide the content/data to Android applications
from an Android system or other Android applications. To create a service, you
create a Java class that extends the Service base class or one of its existing
subclasses. Content providers provide the following four basic operations.
These are also known as CRUD operations, where:
C – Create: It is used for the creation of data in content providers.
R
– Read: It reads the data stored in the content provider.
U
– Update: It lets the editing in existing data in content
providers.
D
– Delete: It deletes the existing data stored in its Storage.
To implement content providers, we’d use the following
callbacks in Java:
·
Broadcast
Receivers: Broadcast
Receivers simply respond to broadcast messages from other applications
or from the system itself. These messages are sometime called events or
intents. For example, applications can also initiate broadcasts to let other
applications know that some data has been downloaded to the device and is
available for them to use, so this is broadcast receiver who will intercept
this communication and will initiate appropriate action. Some of the broadcast
receivers are:
§ android.intent.action.REBOOT
§ android.intent.action.DATE_CHANGED
§ android.intent.action.BOOT_COMPLETED
·
Intents: An Android Intent
is an abstract description of an operation to be performed. It can be used with
startActivity to launch an Activity, broadcastIntent to send it
to any interested BroadcastReceiver components, and startService(Intent)
or bindService(Intent, ServiceConnection, int) to communicate with a
background Service.
·
Views:
All the
interaction of a user with the Android application is through the user
interface(UI). View is the basic building block of UI (User Interface)
in android. View refers to the android.view.View class, which is the super
class for all the GUI components like TextView, ImageView, Button etc
5. Conclusion
In this article, we saw basics of android and development
necessary to know before beginning android pen testing. In the next few
articles in the series, we’ll be learning complete Android Penetration Testing
that will cover both aspects static and dynamic analysis, especially covering
the Mobile OWASP Top 10 and completing challenges in DIVA application.
6. References
·
developer.android.com
·
wikipedia.com
·
tutorialspoint.com/android/index.htm
0 comments:
Post a Comment
