Here is the walkthrough of our very own Capture-the-flag, HA: Sherlock which is designed by our team at Hacking Articles.
“HA: Sherlock” is a vulnerable machine based on the famous investigator
Sherlock Holmes’s journey on solving the Curious Case of Harshit's murder! This
is a Forensic based Capture-the-Flag and is not a Boot-to-Root. So, there are a
total of 100 points scattered over the lab and the objective is to find all 100
points.
The ultimate aim is to apply the concepts of
forensics to capture-the-flags and have fun. You can download the VM from here.
So, let's being with the walkthrough of this lab. Switch
on your Kali Linux and virtual machines.
Table of Contents
·
Network Scanning
o
Netdiscover
o
Nmap
·
Enumeration
o
Morse Code Conversion
o
Bruteforce openssl
o
Epoch convertor
o
Ram analysis using Volatility framework
o
Image analysis using Autopsy
·
Exploitation
·
Root Flag
Network Scanning
So, let's start with finding the IP address of the
vulnerable machine by performing a network scan by using Netdiscover
command. Here we need to understand the relation between the IP address and MAC
address of the IP addresses that are scanned. Here we choose the IP address 192.168.0.170
whose Hostname is a VMware machine. To
do this, you can type:
netdiscover
Such that we have now obtained the IP address, our
next step will be to scan the network using Nmap. By using nmap we will
be able to discover all the open ports and services present in the
machine so that we can further exploit them. So, we can use the command:
nmap -sV
192.168.0.170
Here we are using a service version scan which will
display the versions of all the open services. Here you see that there are
multiple open services like- ftp, ssh, smtp, http, pop3, IMAP, SSL/IMAP, SSL/pop3,
etc. and their respective versions are displayed.
Enumeration
Such that we see the HTTP services s=running, let us
hunt our first flag by looking up the webpage on the browser.
http://192.168.0.170
Let us go to the “View page source” of
the HTML page and look if we can find something related to capturing the flag.
And here we find our first clue which indicates the presence of a .mp4 file in
the machine. So, let us look for the .mp4 file.
So, we try to pick up the keywords from the comment
found in the HTML page source and see two prominent names i.e. Irene and
Sherlock. So, we try using the two names as a .mp4 file in the web browser. And
here at irene.mp4, we find a video playing, which could be password protected.
So let us download the video and see
After watching the video, we realize that that there
is nothing present in the video, so we move onto the ssh service. On doing that
we see a banner named sherlock and we see that there is a password for the ssh
login which is in “morse code”.
Let us copy the morse code to find the password to
the username root@192.168.0.170 . Here we see that we have found
the password as BASKERVILLE.
We can then use the password “BASKERVILLE’ to
decrypt the.mp4 file and see that there is a file with the name 15_points.txt.
Here you see that you have found the first flag and
have earned 15 points. SO, let us move on to find the remaining points
spread over the machine.
Now let us try using Harshit’s name as a username to
find more clues and lets ‘brute force’ into the POP3s using the tool Hydra. We use the
rockyou.txt dictionary. So, you can use this command,
hydra -l harshit -P
/usr/share/rockyou.txt 192.168.0.170 pop3s
Here you see that the password to the username Harshit
has been cracked and is superman. Now we use the s_client command to implement
a generic SSL/TLS connection. Along with that, we make use of the -crlf option
which translates a line feed from the terminal. So, let us use the command,
openssl-s_client -crlf
-connect 192.168.0.170 pop3s
Here we see the server certificate and we can also see the email threads that were exchanged. Here you see that the killer has sent a threatening email to Harshit.
You can use the above-found username and password to log in and find more clues related to the murder of Harshit. And here you see that there is another threat message. Here we see that there is the emphasis given to last autumn so select the different timestamps mentioned in the email thread.
Open your web browser and look for an epoch
converter that converts timestamps into a different numerical value.
Enter the value in the Human date to time stamp
converter of the epoch converter and an epoch timestamp will be generated.

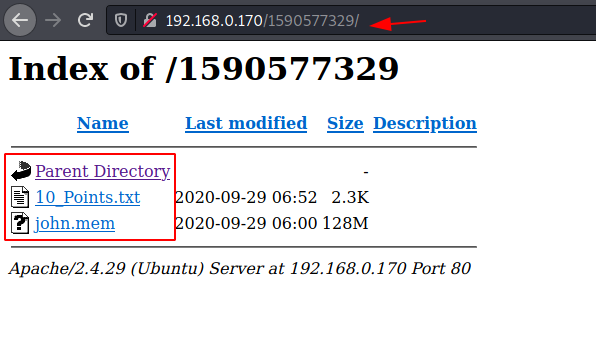

Once you have found the epoch timestamp number, you
can then find the directory of the same name in the URL of the web page and
there you find a file with the name 10_Points.txt and another file with
john.mem. Let us open the two files.
Now let us open the text file and see that
we have won another 10 points. So in all now we have 25 points. Let us look in
the .mem file that we have found.
From the file
extension, we can now understand that is a memory dump file and we can analyze
it using the volatility framework. We
can look for the key files that can be found in the memory dump. We can use the
following command to get details about the ram.
volatility -f john.mem imageinfo
We can try the
various plugs and now lets us look for a notepad file plugin and here we can
find some letters in the file. You can use the following command:
volatility -f john.mem
–profile=WinXPSPx86 notepad
Copy the text that we have found in the
notepad and let’s try converting it using rot13 and there you find a text that
says Guptchar. Guptchar is a Hindi word for the detective. And it looks
Moving forward, we should think like
sherlock. Make the username as John and can use Guptchar as the
password. If you go back and remember, we had seen the FTP port to be open and
let us connect to FTP. Add the username and password. And now you are logged
into the FTP. Let’s use the command to change the directory to files and see
the files present in it.
ls
cd files
ls
Now using the get command acquire the files
using FTP and now open the text file using cat command.
get 10_points.txt
get Mycroft.001
cat 10_points.txt
Now let us have a look at the other, as its
file extension implies that it is a raw image file that needs to be analyzed
using the Autopsy tool in kali Linux.
Now we have a total of 35 points and find
other points to get a full 100 points.
Let us start autopsy to start analyzing the
image file.
Enter the case name, investigator’s name,
and create a new case.
Now add the host to the case.
Now add the hostname as host1 and add the
host.
Now let us add the image file that we have
found to proceed ahead.
Add the location, and the additional type
of image file it. As we know it’s not a complete disk image, we will go with
partition and click on next.

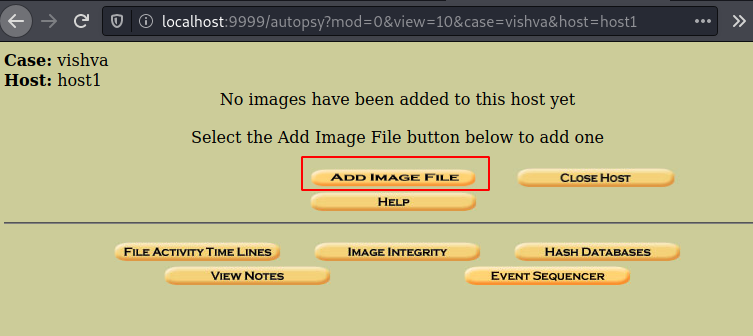

You can then click on the ‘add image
file’.
Now click on the option of file analysis
and then you will be able to see a directory with the name important. Click on
it to view its contents.
Now click you will be able to see various
files in the directory. There are three files, There are two image files and the
other is a text file.
When we open the 10_points.txt, we will get
ten 10. Now we have a total of 45 points. Let us look for more points. Let us
first have a look at the hint.jpg file to proceed. The following hexadecimal values indicate the
different component source address, a destination address, etc. Here we have
found this unique value 16 which is then converted into a hash to find the clue
further.
When you convert this hexadecimal value
into a decimal value, you get a value 22. Which is an indication of port 22.
The hexadecimal value that is highlighted
in light-green is selected and converted into text and we have found the text
which says khufiya. Khufiya in Hindi means confidential. So we will now
see how we can make use of this word.
Exploit
Previously we had found a file named Mycroft.png
and we found the hint of port 22, so let’s exploit ssh login using
Metasploit. Open msfconsole and makes use of the auxiliary module.
use auxiliary/scanner/ssh/ssh_login
set hosts 192.168.0.163
set username Mycroft
set password Khufiya
to exploit
Now you see that the session is created and start the firsts session.
We are now into the machine with session 1. Type the following command;
sessions -u 1
Now let us create a meterpreter session by connecting with session2.
sessions 2
Bravo!!!! You have established a meterpreter session. Let’s list the
files on the machine. You see the files with the name 15_Points.txt and jim.wav
and let us download them. Now we have 60 points in all.
Let us open the audio file that is named as jim.wav and you
got the hint to use the file to analyze the audio file. Here we have a hint
that there is a Deep Sound application that can be used to analyze the file.
So, let us download deepsound.py, and let’s crack the hash using
john the ripper. So, let’s use the following command;
/usr/share/john/deepsound2john.py jim.wav > hash
john --wordlist=/usr/share/wordlists/rockyou.txt hash
john hash --show
The password that is cracked from the video file is displayed for the
jim.wav file which is poohbear.
Now we can open the Deep sound and enter the password in it. And now
you can see that there are two files present in the .wav. Let us download the
two files and then see them one by one.
The text file says that we have one 15 more points. Hurrah! Our
total is 75 points. Let us look for 25 points. Let us open the other text file
that we have found using the cat command.
cat creds.text
Here we see a PGP Message that can be decrypted using base 64 and hence
we will find the original plain text.
echo “QmhlZGl5YQ=” | base64 -d
The password that was decoded using base64 was Bhediya.
Let us login using the user sherlock
su sherlock
And enter the password that was decoded previously
sudo-l
sudo bash
cd /root
Let us change the directory and list the contents within it. And
there you find the last 25 points which sum up to the 100 points!!!!
ls
There you go! The HA: Sherlock virtual machine has been rooted!!
cat final.txt
cat 25_Point.txt
