AlienVault: OSSEC (IDS) Deployment

In this article, we will discuss of Deployment of OSSEC (IDS) agents to the AlienVault server.

OSSEC is an open-source, host-based intrusion detection system (commonly called IDS) that market itself as the world’s most widely used intrusion detection system that performs or helps us to Monitor: -

·         Network Anomalies

·         Log analysis

·         Integrity Checking

·         Windows registry monitoring

·         Rootkit detection

·         Process monitoring

·         Real-time alerting

·         Active response

·         Policy monitoring

 Intrusion detection systems are customizable like a firewall and also, they can be configured to send alarm messages upon a rule’s instruction to automatically answer to the threat or warning as for your network or device.

OSSEC (IDS) can warn us against DDOS, brute force, exploits, data leak, and more external attacks. it monitors our network in real-time and interacts with us and with our system as we decide. It can be used to monitor one server or thousands of servers in a server/agent mode.



Table of content

For Linux

·         Prerequisites

·         Required dependencies

·         Download OSSEC source code

·         Extract & install OSSEC agent from source code

·         Installation of OSSEC HIDS Agent

·         Deploying OSSEC Agent to OSSEC server

·         Running OSSEC Agent

For windows

·         Download OSSEC agent for Windows

·         Install OSSEC agent

·         Generate OSSEC key for the agent

·         Run and verify OSSEC agent is connected or running



prerequisites

·         Ubuntu 20.04.1

·         Windows 10

·         Root or Admin privileges



For Ubuntu 20.04.1



Required Dependencies

To install OSSEC agent on Ubuntu 20.04.1 there are some requirement need to be installed before agent installation as listed below: -

·         GCC

·         Make

·         Libevent-dev

·         Zlib-dev

·         Libssl-dev

·         Libpcre2-dev

·         Wget

·         Tar

You can download this all requirement by simply running this command: -



apt install gcc make libevent-dev zlib1g-dev  libssl-dev libpcre2-dev wget tar



Download OSSEC source code



You can download the latest OSSEC source code from the Official release page of GitHub or simply running this command: -



wget https://github.com/ossec/ossec-hids/archive/3.6.0.tar.gz -P /tmp





Extract & install OSSEC agent from source code



Once the source download complete you can extract it by simply running this command



cd /tmp

tar xzf 3.6.0.tar.gz



In manner to install OSSEC agent navigate to the source code directory and run the installation script as shown below



cd ossec-hids-3.6.0/

./install.sh





Further then select your installation language or press ENTER to choose default installation options and follow the steps as described below: -





·         Specify the type of installation. In our case we are installing an OSSEC-HIDS agent, so we go with the option of agent.

·         Choose the installation path. By default, it is /var/ossec or you can define the path as per your environment.

·         Enter the OSSEC-HIDS server IP or AlienVault server IP.

·         Enable system integrity check.

·         Enable rootkit detection.

·         Enable or disable active directory response.

·         Once you are done with defining the default options, proceed to install the OSSEC agent by pressing ENTER

·         Then after press ENTER to close the installer as shown below

Deploying OSSEC agent to AlienVault server



In manner the agent to communicate with the server



·         You need to first add it to the HIDS server or AlienVault server

·         After that extract, the agent authentication key from the AlienVault server



To extract agent key from server, go to the AlienVault Web UI and then navigate to Environment > Detection as shown below: -



Then select or add Agent where you installed OSSEC agent and then extract or copy the key as shown below



Once you have extracted the key, Import the key on the agent simply by running the following command: -



/var/ossec/bin/manage_agents



Enter I, paste the key that you copied from AlienVault Web UI and confirm adding the key then exit from the window by pressing Q as shown below



Running OSSEC agent

Once the installation completes start the OSSEC agent simply by running the following command:



/var/ossec/bin/ossec-control start

Or

systemctl start ossec





To stop the agent run the below command



/var/ossec/bin/ossec-control stop

Or

systemctl stop ossec



Other service control commands are described below.



/var/ossec/bin/ossec-control          {start|stop|reload|restart|status}



To check the status.



/var/ossec/bin/ossec-control status





check the logs to see if the agent has connected to the server.



tail -f /var/ossec/logs/ossec.log





As you can see the agent is successfully connected to the AlienVault server

Congratulations !!! you have successfully deployed your Ubuntu machine to the AlienVault server



For windows machine



Download OSSEC agent for Windows

You can download the OSSEC agent for windows from the OSSEC official page

Locate and select package Agent Windows ossec-agent-win-32-3.6.exe or the latest one as shown below:



Install OSSEC agent



Go to the Downloads and run the OSSEC agent installer and hit next as shown below





Choose the path where you want to install the OSSEC agent and hit install

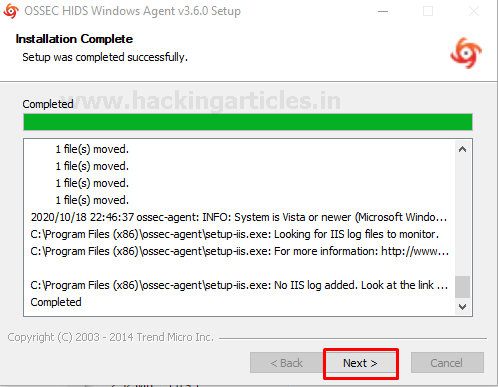

Further then wait for the setup completion and then hit next





Select finish and then exit from the installer.



Generate OSSEC key for the agent



Follow the steps as described below:

·         At AlienVault Web UI go to “Environment > Detection > HIDS”

·         Go to Agents (top right corner)

·         Add a new agent

·         Copy the key and use it at agent as shown below



Come back to the windows machine

Enter the AlienVault server IP and paste the key as shown below



After that confirm agent deployment by pressing ok





Run and verify OSSEC agent is connected or running

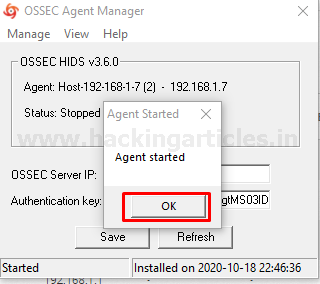

After successful deployment of OSSEC agent start service of OSSEC agent by navigating to “Manage > Start OSSEC” as shown below



As you can see server is started successfully



A new windows service can be found at OSSIM Web UI as shown below

Congratulation !!! you have successfully deployed your windows agent to the AlienVault server.



Hmm…

Let’s verify it checking the logs of windows machine it is processing or not by navigating to “Analysis > Security Events (SIEM)”





Where 192.168.1.7 is my windows machine IP

As we can see the windows machine started sending the processing logs.



Hold tight! this is not enough…..

Have patience …

In this article, we explained the Deployment of OSSEC agent to AlienVault OSSIM.

In the next article, our focus will be on the Threat Hunting, Malware analysis, network traffic monitoring, and much more…
