MISP is an open-source Threat intelligence and sharing platform (formerly known as Malware
Information Sharing Platform) that is used for collecting, storing
distributing, and sharing cybersecurity indicators and threats about
cybersecurity incidents & malware analysis.
MISP provides facilities to support the
exchange of information but also the consumption of information by network
intrusion detection systems (NIDS), a Log-based intrusion detection system
(LIDS), but also by log analysis tools, SIEMs.
·
MISP provides storage of technical and non-technical information about seen malware
and attacks.
·
Creates
automatically relations between malware and their attributes.
·
It
Stores all of the intelligence and threat attributes data in a structured
format.
·
It
Shares threat attributes & malware data by default with other trust-groups.
·
MISP
able to Improve malware detection and reversing to promote information exchange
among organizations (e.g. avoiding duplicate works).
·
MISP
Stores all information from other instances locally (ensuring confidentiality
on queries).
To configure MISP in your Ubuntu platform,
there are some prerequisites required for installation.
Ubuntu 20.04.1
Mysql
Non-root user
Table of Content
·
Install MISP and All
Dependencies
·
Default Credentials
·
Change admin password
·
Create an organization
·
Create admin for the new
organization
·
Enable threat intel feeds
·
Setup of IPython+PyMisp
·
Integrate MISP instance with PyMISP
·
Create a MISP event
·
Addition of object to MISP
event
·
Search MISP for IOC
·
Threat monitoring
·
Updation of MISP in future for latest
versions
Install MISP and All
Dependencies
Let’s begin installation with system
update and upgrade.
sudo apt-get update -y && sudo
apt-get upgrade -y
MISP requires Mysql-client available in
our machine. Install Mysql-client using the below command.
sudo apt-get install mysql-client -y
To install MISP on fresh ubuntu 20.04.1,
all you need to do is the following. Just remember one thing this is an automated
bash script that can’t run with Root privileges run this script with Non-root users.
Install MISP with install.sh
Change the permission of file
misp_install.sh and make it executable. To do this run the following command.
The script will need some time to install MISP on your Ubuntu platform.
chmod +x misp_install.sh
./misp_install.sh -A
In the middle of installation Enter “Y”
to create MISP user
Now, we are going to add a rule to
firewall this will allow port 80/tcp and 443/tcp
sudo ufw allow 80/tcp
sudo ufw allow 443/tcp
After, the installation of MISP we can
use a browser to connect to MISP.
By Default, MISP is listening on
loopback address or Base URL To access MISP on your Browser browse the
following URL
Default Credentials
For
the MISP web interface -> admin@admin.test:admin
For
the system -> misp:Password1234
Change Admin Password
Enter new Password
The password must be in standard form.
Minimum Length of password is at least 12 words that contain upper case &
lowercase alphabet, special character and a numerical value
For example: - Ignite@12345
You can verify your credentials by head
over to
or also by going in my profile section of MISP Administration panel
Create an
organization
GO
to Administration section head over to Add Organisations
·
Select Administration > add Organisations
·
Enter “< organization name >” into organization identifier
·
Select “Generate UUID”
·
Select “submit” button at the bottom
You
can also check the instance presence of your local organizations by heading
over to List organizations under the section of Administration
Create Admin for New
Organisation
we
have successfully created an organization let’s assign an Admin role to the
organization all you need to do is head over to “Add
User” under the section of “Administration”
Administration
> Add user
·
Enter “ignite@” for email
·
Check the “set password” password should be in a standard form that
satisfies the minimum requirements.
·
Select “” for organization
·
Select “Role” for the new organization
·
Select “submit” button at the bottom
You
can also check the instance Rights of your local organizations by heading over
to List organizations under the section of Administration

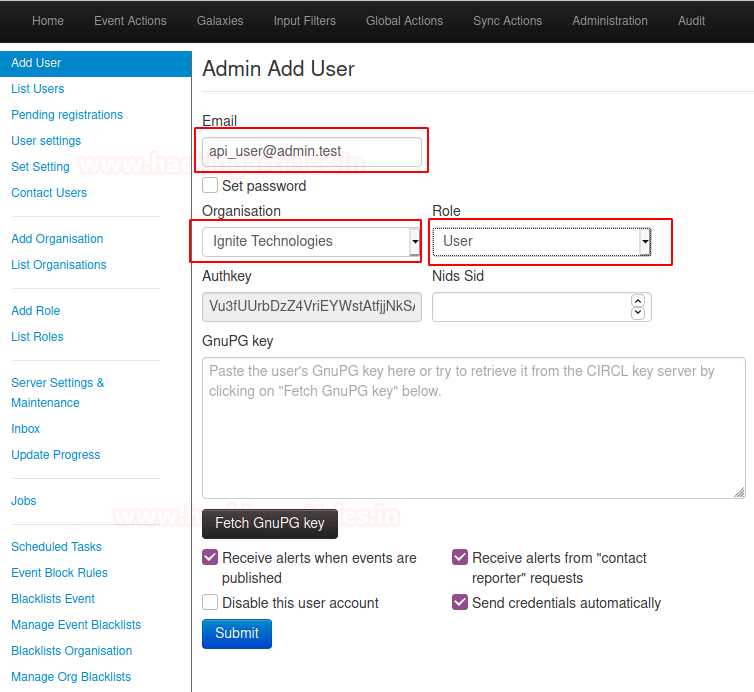

Create
an API user for the new organization
Administration > Add user
Enter “api_user@” for email
Select “”
for organization
Select the “user” role for the new
organization
Select “submit” button at the bottom
Enable Threat intel
feeds
TO enable feeds you will need to login
to MISP console with the superuser account which is admin@admin.test account.
This one is a little bit special, as we
can go into the “Sync actions” tab to build our panel.
When entering the Sync actions tab,
select the list feeds tab.
From there find feeds such as CIRCL osint
and check feeds tab
And then head over to the “Edit” icon
·
Check “Enabled”
·
Check “Lookup Visible”
·
Check “Caching Enabled”
·
Select “Edit” at the bottom
By
Editing feeds head over to “fetch and store all feed data” tab
Great!
we have successfully Enabled threat intel feeds.
Setup Ipython+PyMISP
PyMISP is a python library to
access MISP platforms via there REST API.
PyMISP allows you to fetch events, add
or update events/attributes, add or update samples or search for attributes. PyMISP
API is used to store indicators of compromise (IOCs) in MISP and query IOCs
from MISP.
In the MISP console head over to
Administration and select List Users
Look for “api_user@” and
copy “auth key”
Let’s open the terminal and begin setup
of Ipython & PyMISP
To do this run the following command
Pip3 install ipython
pip3 install -U pymisp
Connect
MISP instance with PyMISP
Ipython
Ipython is an
alterative python interpreter it is an interactive shell used for computing in
python. Let’s load the Ipython interpreter and start scripting to do this
follow the below commands. Just remind one thing don’t leave or exit from
python interpreter till the end (e.g ipython).
Ipython
from pymisp import ExpandedPyMISP
misp_url =
'https://'
misp_key =
""
misp_verifycert
= False
misp =
ExpandedPyMISP(misp_url, misp_key, misp_verifycert)
Create
MISP Event
MISP events are encapsulation for
contextually linked information. Linked information will include things such as
domains, file hashes, IP addresses, Malicious binaries,
We are going to call an object named
“Event from notebook 2” to do this run the following command.
from pymisp
import ExpandedPyMISP, PyMISP, MISPEvent
event_obj =
MISPEvent()
event_obj.distribution
= 1
event_obj.threat_level_id
= 1
event_obj.analysis
= 1
event_obj.info
= "Event from notebook 2"
# Add event to
MISP
event =
misp.add_event(event_obj)
event_id,
event_uuid = event['Event']['id'], event['Event']['uuid']
print
(event_id, event_uuid)
Addition
of object to MISP event
The creation of a new MISP object
generator should be done using a pre-defined template and inheritance. Our new
MISP generator needs to generate attributes, and add them as class properties
using additional attributes. When the object is sent to MISP, all the class
properties will be exported to JSON Export. Attributes in MISP can be network
indicators such as IP address, System indicators (e.g a string in memory), or bank
account details.
To do this run the following command.
from pymisp
import MISPAttribute
# Define
attributes
attr_type =
"ip-src"
value =
"8.8.8.8"
category =
"Network activity"
to_ids = False
# Create
attribute object
attribute =
MISPAttribute()
attribute.type
= attr_type
attribute.value
= value
attribute.category
= category
attribute.to_ids
= to_ids
# Add
attributes to event
attribute_to_change
= misp.add_attribute(event_id, attribute)
# Print event
print(attribute_to_change['Attribute']['id'],
attribute_to_change)
Search MISP for IOC
Let’s search for a IOC in MISP ipython
interpreter. Run the following command to perform the search.
misp.search(controller='attributes',
type_attribute="ip-src", value="8.8.8.8")
Awesome now you have completely setup
MISP on your Ubuntu Platform.
Great!
Threat Monitring
Let’s check what happens on the MISP
dashboard.
This one is gonna very special as we can
go into the “Audit” tab to build our panel.
When entering the Audit tab
select “List Logs” tab
Hold tight!
As we can see, Now we have direct access
to every log related to Threat Intelligence.
We can for Example track illegal
attacks.
Similarly, we can do Malware analysis
from various servers also we can see logs of (NIDS) Network intrusion detection
system, (LIDS), Log analysis Tools,
SIEMs.
Nice! Now your Panel is included in your
dashboard.
Updation of MISP in Future for Latest Versions
It is strongly recommended to upgrade
MISP via the Web interface. This Blog may not always be up-to-date and will
require you to fix permissions.
In general, updating MISP between point
releases for example 2.4.50 -> 2.4.53 happens with the following command are
to be executed to be as root.
To update the latest commit from 2.4
branches simply pull the latest commit.
Enter the following command
cd /var/www/MISP
Sudo -u www-data git pull origin 2.4
Sudo -u www-data git submodule update
–init –recursive
